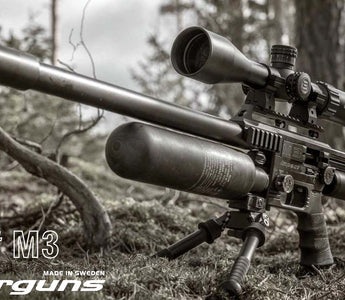

FX Impact M3

Posted by John Saifi on

FX Impact M3

IMPACT M3

The FX Impact defines what a modern airgun can be. A rifle without limits. It is a once in a generation rifle. A rifle that advances and evolves to push the boundaries of what compressed air can achieve. The Impact M3 once again redefines this high standard with groundbreaking advancements, upgrades, and a sole unwavering focus on creating the most advanced, most accurate, and most capable airgun you’ll ever shoulder.

The improvement within the M3 start with its dual regulators. The 1st regulator pre-reduces the air pressure in preparation for the 2nd regulator. This provides less stress on the 2nd regulator and achieves a more constant output pressure with less standard deviations.

The FX Power Plenum 720 is the new energy source of the Impact M3. This larger diameter plenum and its 72cc volume of compressed air provides both the precise amount of air and the power needed to propel the projectile. This new plenum works in coordination with the M3’s porting and valving to deliver the best power and efficiency available.

One of the most substantial upgrades to the Impact M3 is the user interface to the rifle: The Quick Tune System. This essentially tool-free system encompasses everything a shooter could use to fine tune their rifle’s accuracy, allowing unlimited possibilities. Adjust the air pressure the rifle is using via the dual regulators, how long the valve stays open with the front valve adjuster, and now adjust the strength of the hammer with the completely redesigned micro and macro power adjustments. The Rear Macro Power Wheel is a 16-step power wheel that adjusts the strength of the hammer in increments of 5-15 FPS (depending on caliber and reg pressure). This works in conjunction with the Micro Fine Adjustment. This tunes the hammer strength in incredibly small increments of just 1-2 fps with each click of the barrel roller, all at your fingertips. The combination of these is unrivaled in the airgun world!

Other improvements are vast and include an ambidextrous short throw cocking lever with enlarged handle, dual transfer ports on most calibers, tightened barrel housing tolerances to provide a tighter fit and better accuracy to the rifle, tightened breech tolerances to house the Side-Shot Magazine, an updated trigger that provides a crisp second stage break while also allowing the trigger post to move forward or back, 20 MOA built into the scope rail, Dual Wika manometers, and an abundance of forthcoming optional accessories.

The FX Impact is firmly seen as the greatest airgun made. The proof is undeniable. Shooters flock to the FX Impact, competition lines are dominated with the presence of this rifle, and shooters continue to expand what an air rifle can do with one rifle; the FX Impact. Why? It performs, it delivers, and it continues to provide the foundation for innovation. The FX Impact M3 advances the claim: the FX Impact M3 is the most advanced, most exciting and most accurate air rifle available.



Note: Muzzle energy listed in the specifications of each rifle is for maximum setting. Due to differences in regulations the rifle is often produced with a lower muzzle energy from the factory. Contact your dealer for more info about muzzle energy in your region.

Technical Specifications

Coking System Right hand positioned sidelever with an ambidextrous mount for lefthanded shooters
Magazine Type Removable high capacity
34 shot when Cal .177
28 shot when Cal .22
25 shot when Cal .25
23 shot when Cal .30
Stock AR15 style grip
Adjustable recoilpad (height)
Barrel

FX Smooth Twist X
Match grade
Free floating
4,5 (.177) Length 600 mm
5,5 (.22) Length 600 mm
6,35 (.25) Length 600 mm
7,62 (.30) Length 600 mm

Shot Count

4,5 (.177) ≈ up to 375 shots
5,5 (.22) ≈ up to 330 shots
6,35 (.25): ≈ up to 160 shots
7,62 (.30): ≈ up to 105 shots

Fill Pressure Max 250 bar (3600 psi)
Safety Switch style Manual
Optics 11 mm dovetail scope mount Picatinny rail
Muzzle Built-In Shroud system with additional moderator. (variations may occur depending on country).
Pressure Gauge

One for airtube pressure

One for regulator pressure

Trigger Adjustable Match Trigger



Trigger blade can be adjusted in reach, height and rotated to set the blade in an angle.

Energy 4,5 (.177): up to 47 J – 35 ft/lbs
5,5 (.22): up to 107 J – 79 ft/lbs
6,35 (.25): up 120 J – 89 ft/lbs
7,62 (.30): up to 168 J – 124 ft/lb
Air Capacity Standard  480 cc
Air Cylinder Carbon fiber wrapped air tank
Weight 3,1kg – 6,85 lb
Length 860mm – 34
Charging Foster Quick Disconnect
More features Dual AMP Regulators – Externally Adjustable



Quick Tune System (micro and macro adjustment of hammerspring tension)

Valve adjuster (valveflow tuning)

Interchangable Caliber System

Multiple Accessory rails (picatinny) sides and bottom

Accessory spot to mount angled pressure gauge

Plenum Power Plenum 720 (72cc Volume)



Interested in buying one for yourself, contact us with your requirement here.





images source: fxairguns.com
